EU standard EI120 heat insulating fire resistant glass suitable for school

Categories

EU standard EI120 heat insulating fire resistant glass suitable for school

1.fire resistant glass

2. Color options :clear,ultra clear.
3. Thickness:10mm,12mm,16mm,18mm ,20mm ,other thicknesses can be customized.
4. Customization: size,color,pattern, thickmess, shape etc.
5. Processing :laminated glass, insulated glass, ceramic fritted patterned glass, curve glass, decorative glass, furniture glass, polished edge(C edge,pencil edge), flat edge, drill hole, etc.
6. Size: Max Size:2440mm*8000, customized size is also available
7. Warranty period:10 years.
8. Delivery time:15-20days depends on the order quantity.

What is fire resistant glass?

fire resistant glass, as an innovative safety material, is designed to withstand extreme heat and effectively prevent the spread of fire, smoke and radiant heat inside buildings. It can maintain structural integrity and excellent thermal insulation performance for a certain period of time when a fire occurs, providing valuable time for personnel evacuation and emergency response. It is a special type of safety glass that has strong fire resistance and thermal insulation properties through special material and process processing.

Characteristics of fire resistant glass
  1. Fireproof: Fireproof glass is processed by special technology, which can keep the structure stable for a long time in high temperature environment, without breaking or deformation, and provide safety guarantee for personnel evacuation in emergency . It is not only an investment in building safety, but also a high degree of responsibility for the safety of life and property.
  2. Structural stability: Even in a fire, fireproof glass can maintain structural stability, is not easy to break or deform, and reduces the risk of secondary injuries caused by glass breakage.
  3. Transparency: Despite special treatment, fireproof glass still maintains good optical transparency and does not affect the lighting and vision inside the building.
  4. Various types: According to different usage requirements and standards, fireproof glass is divided into composite, laminated, high-strength single-piece and other types to adapt to different application scenarios.
  5. Regulatory compliance: The production and application of fireproof glass must comply with relevant national and international safety standards and regulations to ensure that its performance and quality meet the specified requirements.
  6. Customized service: In response to the special needs of different buildings and usage environments, manufacturers provide customized fireproof glass solutions to meet specific design and performance requirements.
Applications of fire resistant glass

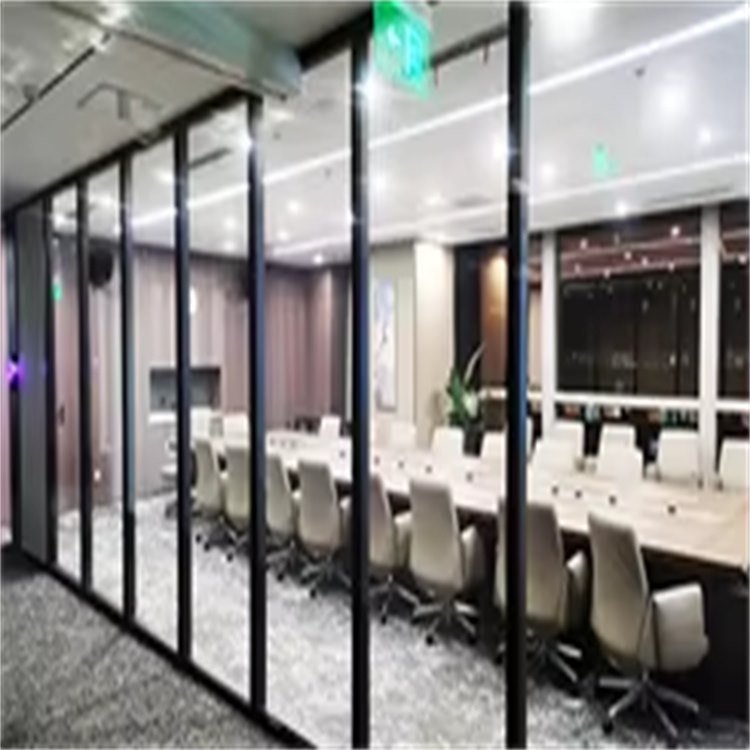

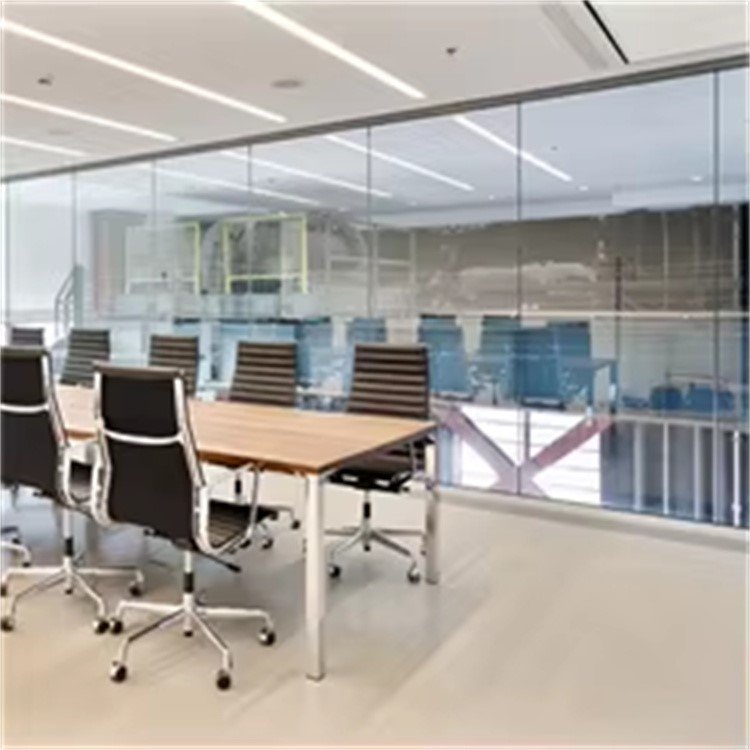

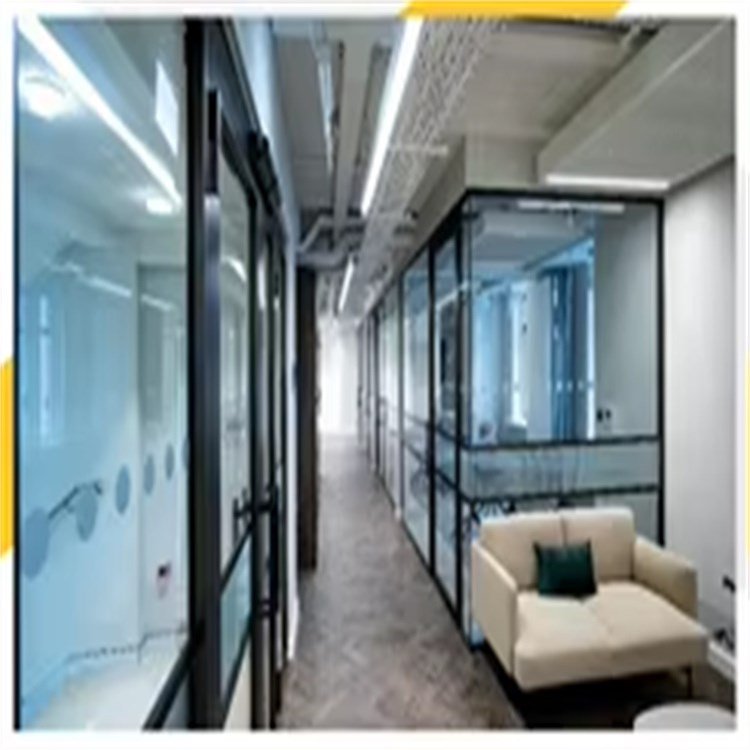

  1. Commercial buildings: In commercial facilities such as office buildings, shopping malls, and hotels, fireproof glass is often used in partition walls, doors, windows, ceilings, etc. to improve the overall fire safety level.
  2. Schools: In such public places, it is necessary to ensure that people can evacuate safely in an emergency, and the application of fireproof glass helps achieve this goal.
  3. Residential buildings: In residential environments such as high-rise residential buildings and villas, fireproof glass can be used as a material for entrance doors, balcony doors, windows, etc. to improve family safety.
  4. Industrial facilities: In industrial places such as factories and warehouses, due to the high risk of fire, fireproof glass is widely used in key areas to prevent the spread of fire.
  5. Transportation: In transportation vehicles such as trains, cars, and ships, fireproof glass is used in cockpits, passenger areas, etc. to ensure the safety of passengers in emergencies.
  6. Special facilities: In places such as data centers and control rooms that have extremely high safety requirements, fireproof glass can provide an additional layer of protection to prevent fire from damaging key equipment.
  7. Protection of historical buildings: For buildings with historical value, fire resistant glass can improve their fire resistance without changing their appearance, protecting cultural heritage from the threat of fire.

To learn more about our products, please visit https://trustmyglass.com/products

fire resistant glassfire resistant glassfire resistant glassfire resistant glass

Conclusion of fire resistant glass :

In short, our fire-resistant glass products not only have excellent fire resistance, but also take into account light transmittance and aesthetics, making them an ideal choice for modern building fire protection design. Whether used in commercial buildings, residential buildings or public facilities, fire-resistant glass can provide reliable security and make your living and working environment safer and worry-free. We are committed to providing you with the highest quality fire-resistant glass products and services, ensuring that every piece of glass meets the highest standards. Contact us now to learn more about fire-resistant glass and add a solid safety barrier to your building project.

Product Data

Product type

Product Name

Thickness and fireresistance time

Fire resistance

Advantages and disadvantages

Thermal Insulation Fire Glass (EI)

Crystal silicon composite fireproof glass

18mm (30 minutes)

Integrit&thermal insulation≧30 minutes

Maintain the integrity of fire resistance, fire resistance and heat insulation, inorganic materials, no yellowing bubbles, can be used as curtain walls, partitions and other places.

21mm (45 minutes)

Integrity&thermal insulation≧45 minutes

25mm (60 minutes)

Integrity&thermal insulation≧60 minutes

35mm (90 minutes)

Integrity&thermal insulation≧90 minutes

38mm (120 minutes)

Integrity&thermal insulation≧120 minutes

65mm (120 minutes)

Integrity&thermal insulation≧180 minutes

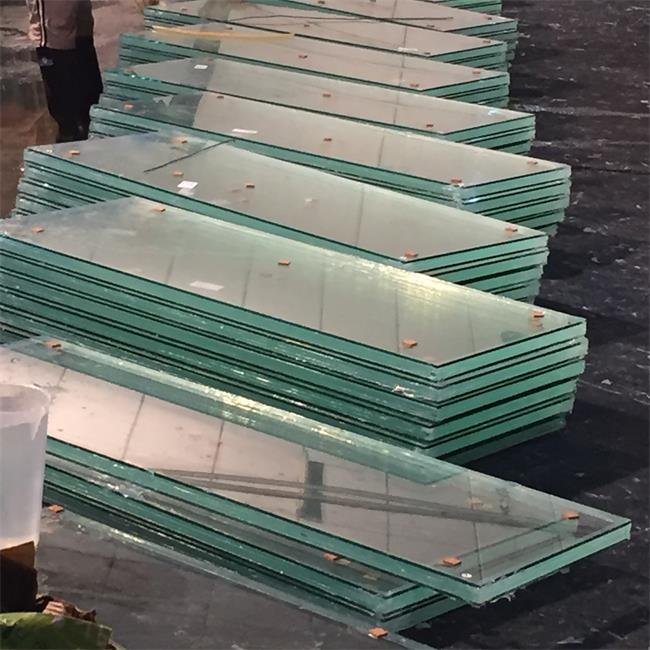

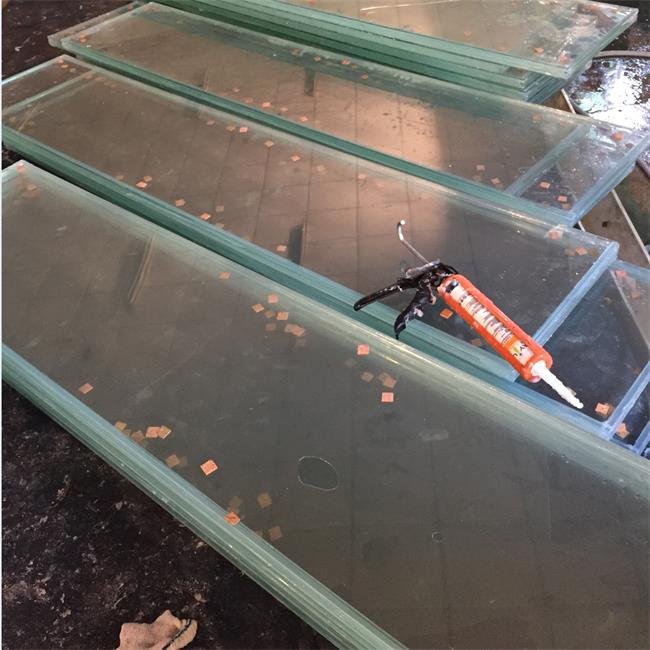

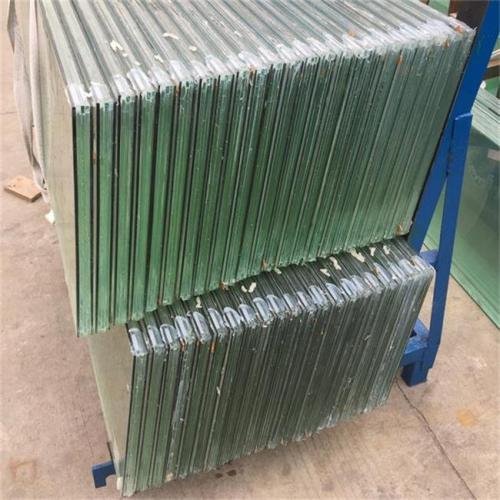

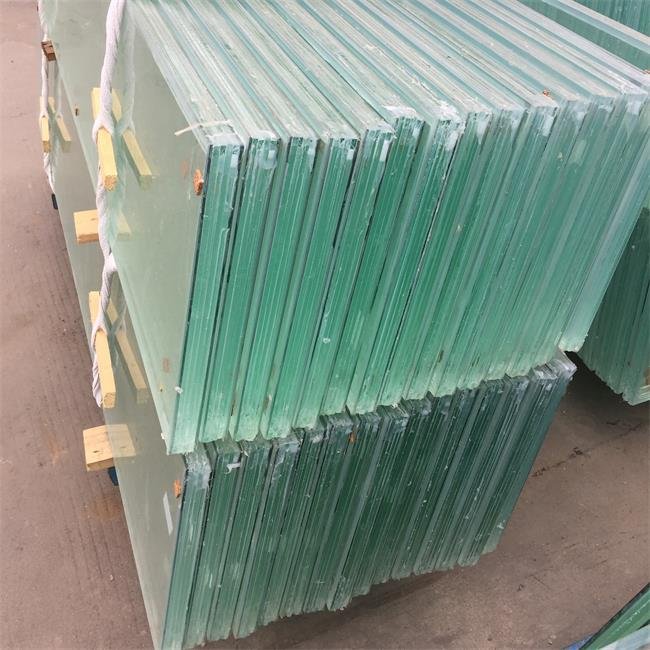

Hydrogel composite fireproof glass

25mm (60 minutes)

Integrity&thermal insulation≧60 minutes

Pay attention to protect the edge from damage, otherwise it is easy to leak, it is only used in indoor environments without ultraviolet radiation, and the size should not be too large.

35mm (90 minutes)

Integrity&thermal insulation≧90 minutes

42mm (120 minutes)

Integrity&thermal insulation≧120 minutes

Radiant heat-reducing fire-resistant glass (EW)

Crystal silicon composite fireproof glass

9mm (60 minutes)

Integrity≧60 minutes,
heat radiation flux≦15kw/㎡

Inorganic material, no yellowing and foaming. Can be used as curtain wall, partition and other places.

12mm (90 minutes)

Integrity≧90 minutes
heat radiation flux≦15kw/㎡

15mm (120 minutes)

Integrity≧120 minutes
heat radiation flux≦15kw/㎡

19mm (180 minutes)

Integrity≧180 minutes
heat radiation flux≦15kw/㎡

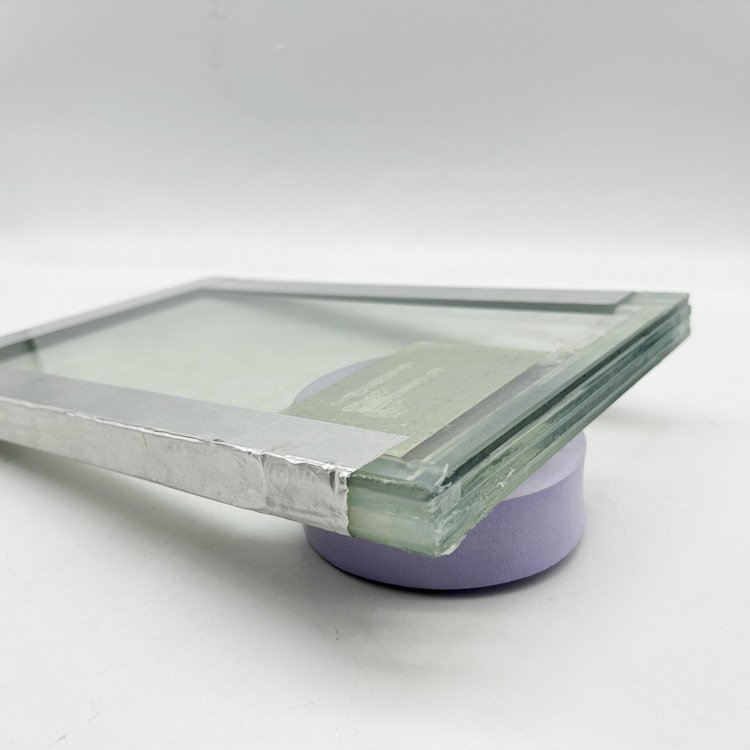

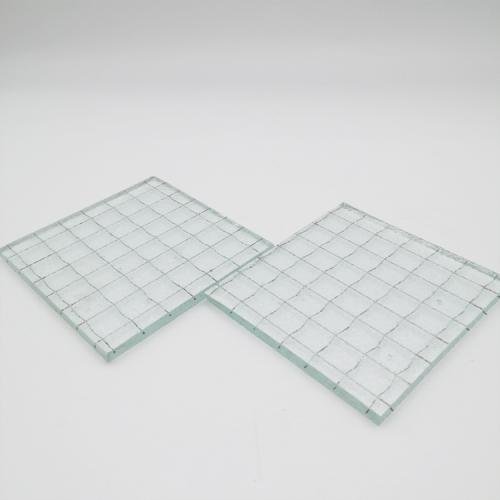

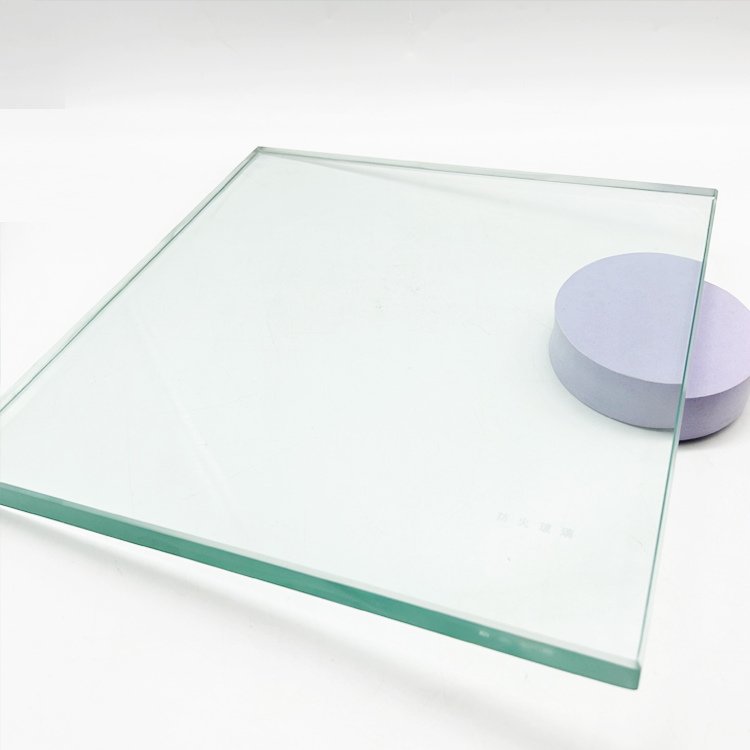

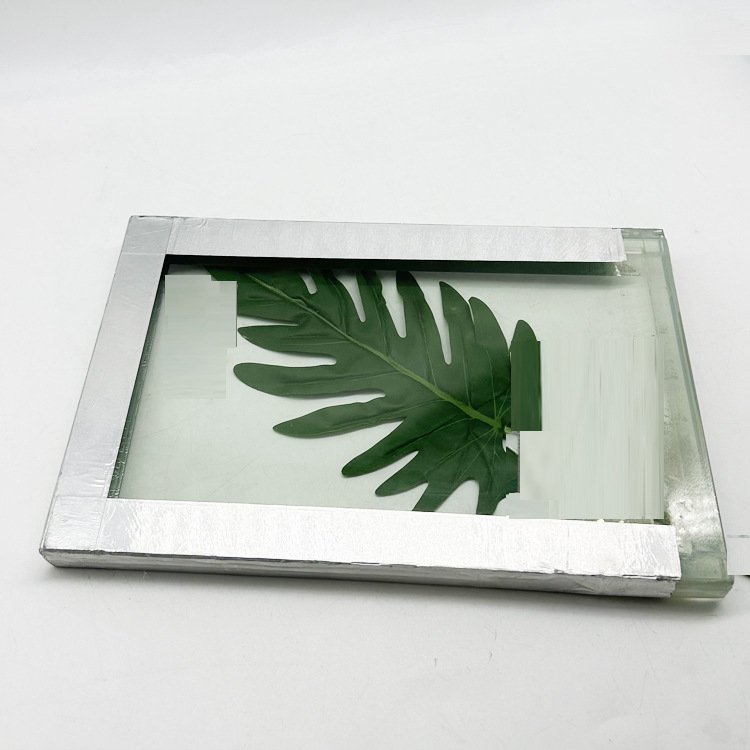

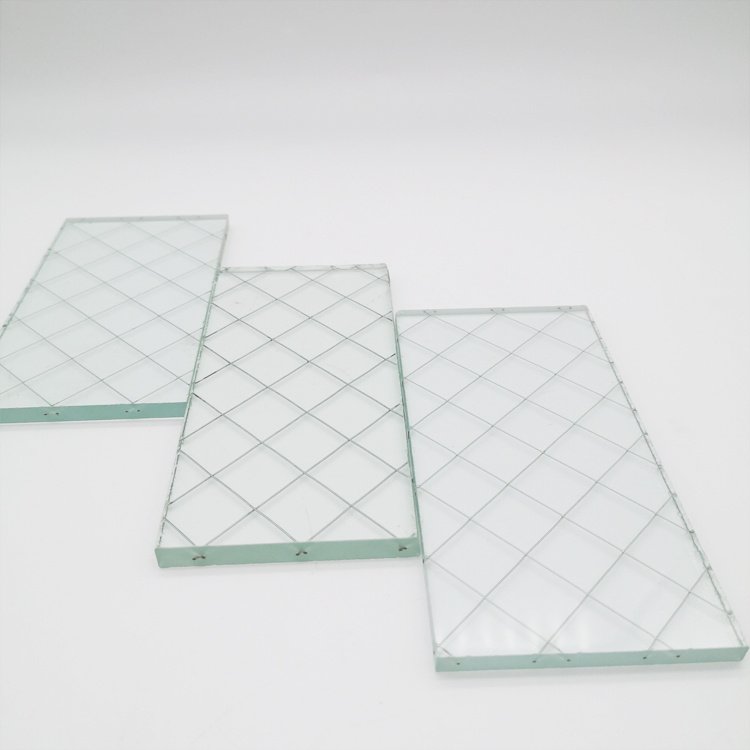

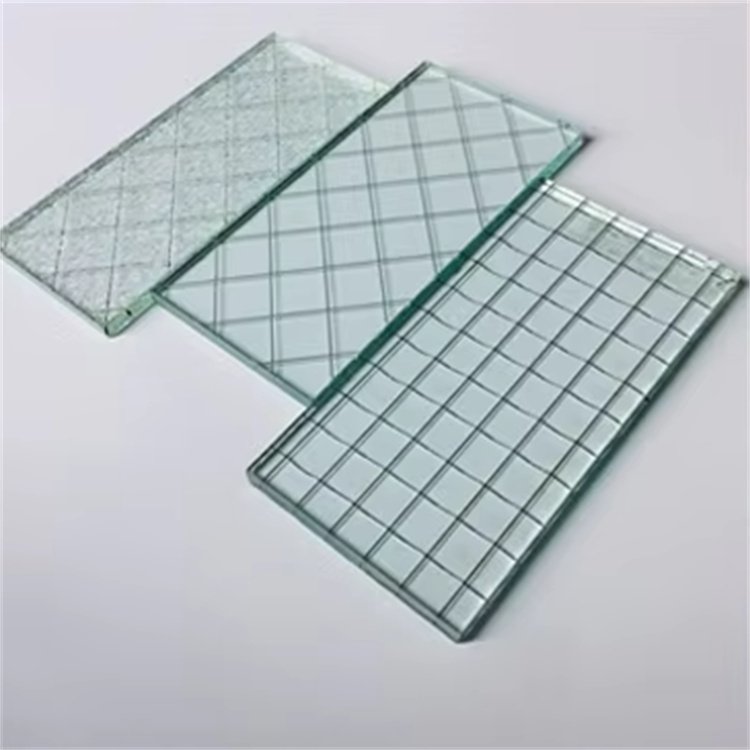

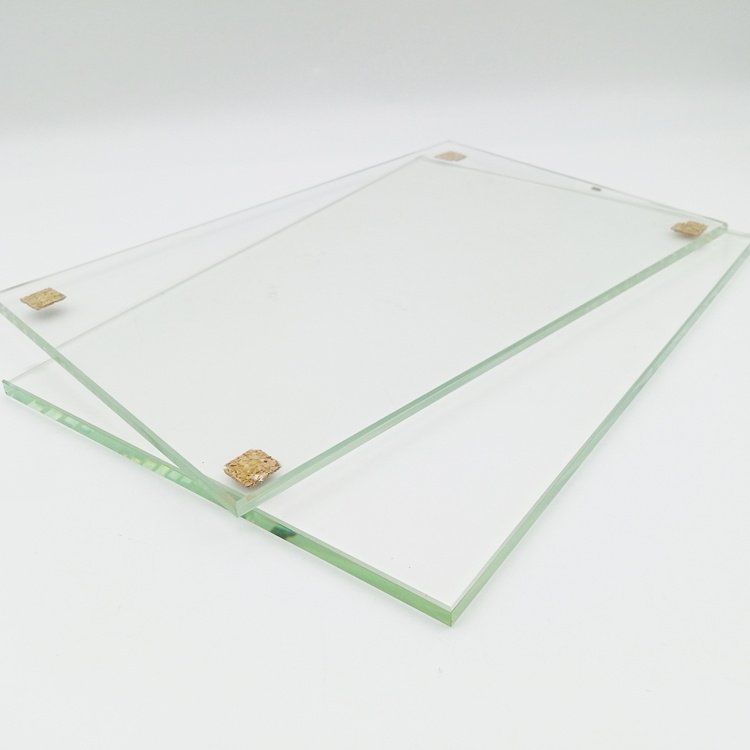

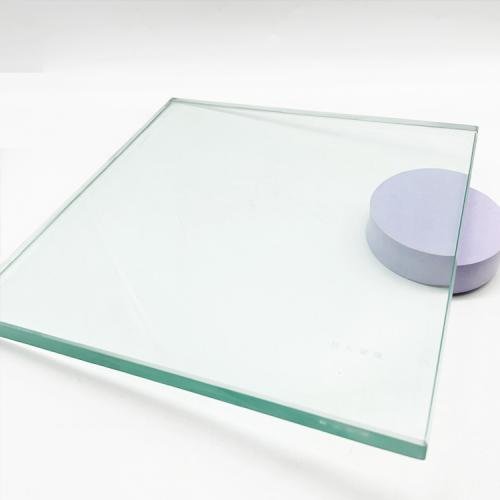

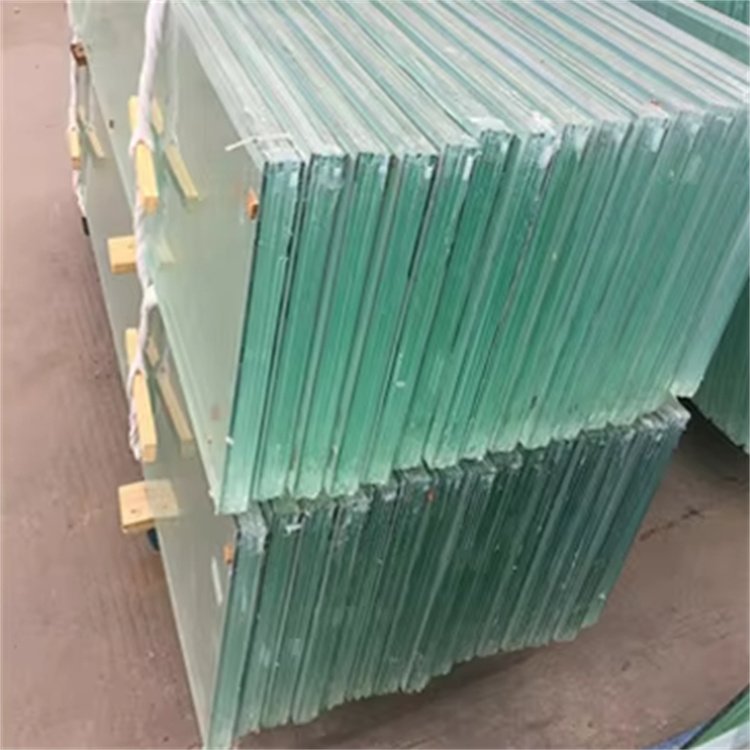

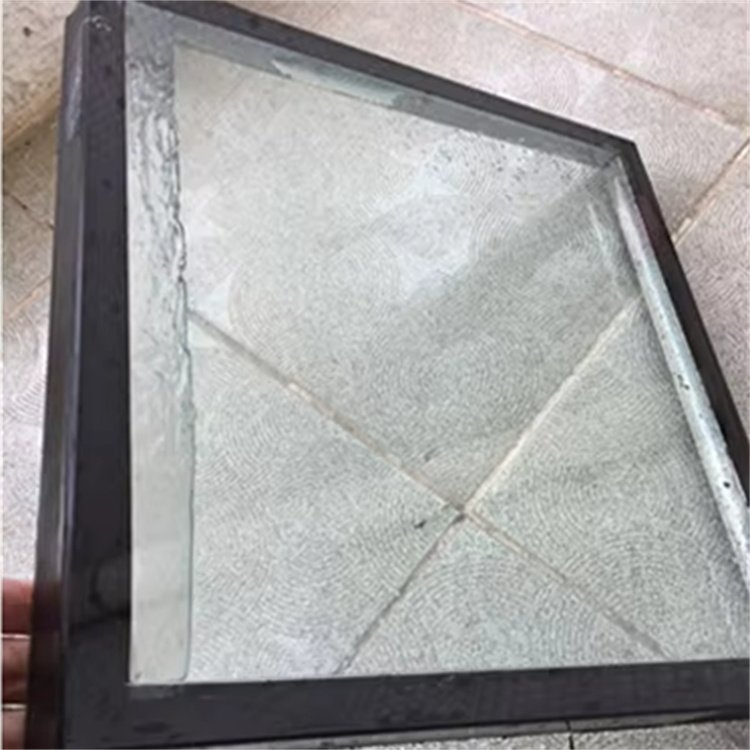

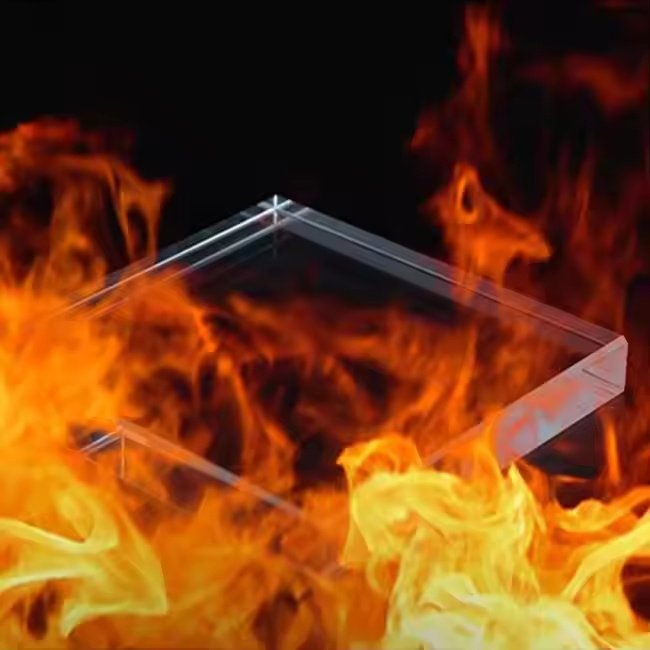

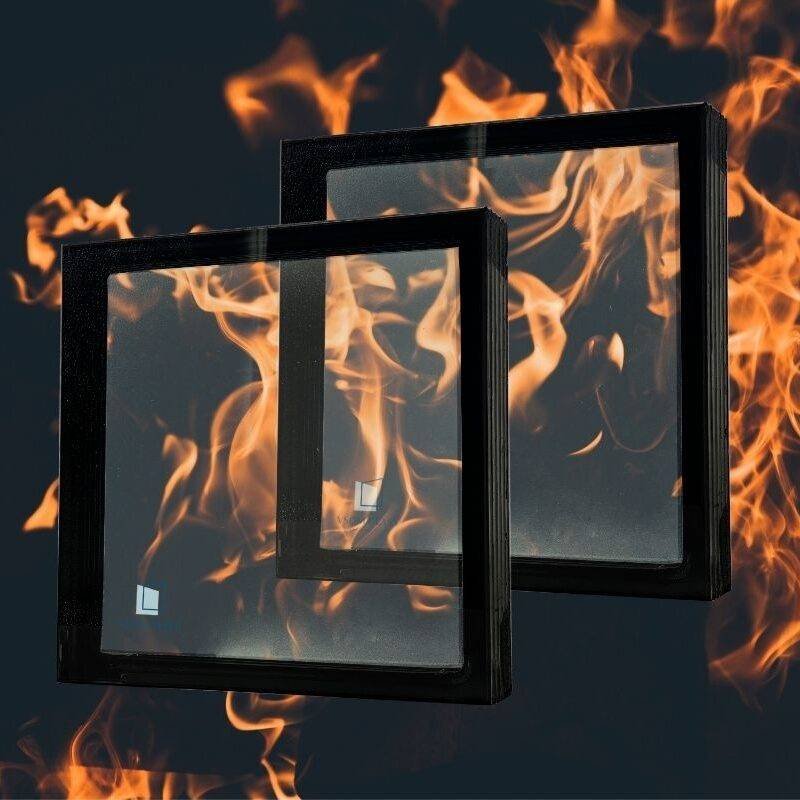

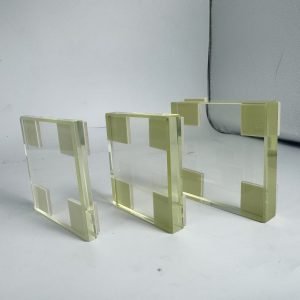

Product Photo

Product Packing

Wooden crates packing option
BTG use 12mm thick recycled hardwood board, no fumigation, hard plastic safety corner,plastic film covering the glass to avoid dirt, with a desiccant inside, to ensure that the glass is dry and not moldy during transportation.

Individual carton packaging options.
BTG use 5mm thick environmentally friendly corrugated boxes, 10mm thick foam board lining, 10mm thick recycled hardwood boards around the four sides of the glass to prevent damage to the edges, free transportation,suitable for retail storage of glass tabletops, shower rooms and other products

L-shaped iron frame packaging.
Welded iron frame, fixed with plastic-steel belt, built-in forklift space, can be quickly loaded and unloaded as a whole, which is convenient for stocking at the construction site.

If you have your own unique glass packaging needs, you can contact us, special packaging requirements are acceptable.
