What is 26.28mm clear tempered laminated glass?
26.28 is the total thickness, and the structure is 12mm+2.28SGP+12mm. clear tempered laminated SGP glass is a high-performance safety glass, widely used in building curtain walls, doors and windows, etc. that require high safety and aesthetics. Among them, SGP (ion polymer interlayer) is a high-performance film produced by DuPont in the United States, with high tear strength, hardness and adhesion, as well as good light stability and thermal stability.
Characteristics of clear tempered laminated glass
- High safety: Two layers of 12mm tempered glass are tightly bonded together by a 2.28mm thick SGP interlayer, so that when damaged by external forces, the fragments will adhere firmly to the interlayer and will not splash around, thus ensuring personal safety.
- Excellent optical properties: clear tempered SGP laminated glass has extremely high light transmittance, up to 78%, ensuring sufficient indoor light and a wide field of vision. At the same time, its yellowness index is lower than 2.5, much lower than the 6-12 of traditional interlayer materials, reducing unnecessary yellowish and greenish phenomena and providing a clearer visual effect.
- Easy installation: clear tempered laminated SGP glass has high rigidity throughout the entire range and has almost the same bending strength as single-piece glass of the same thickness. Compared with PVB laminated glass, its impact strength is 100 times that of PVB laminated glass, and its tear strength is more than 5 times, which enables SGP laminated glass to effectively reduce the thickness of glass while meeting specific wind loads or structural requirements.
- Good weather resistance and durability: 12mm+2.28SGP+12mm clear tempered laminated glass can withstand temperature changes without debonding or glass being damaged, ensuring the safety of laminated glass. At the same time, it has good light stability, is not easy to discolor or become brittle, and ensures optical performance for long-term use.
- Wide range of application scenarios: Due to its high safety, excellent optical properties and high strength and rigidity,clear tempered laminated SGP glass is widely used in building curtain walls, doors and windows, skylights and other occasions that require high safety and aesthetics.
Applications of clear tempered laminated glass
- Building curtain wall: Due to its high strength and rigidity, this glass is often used for the exterior decoration of high-rise buildings, which is not only beautiful but also safe.

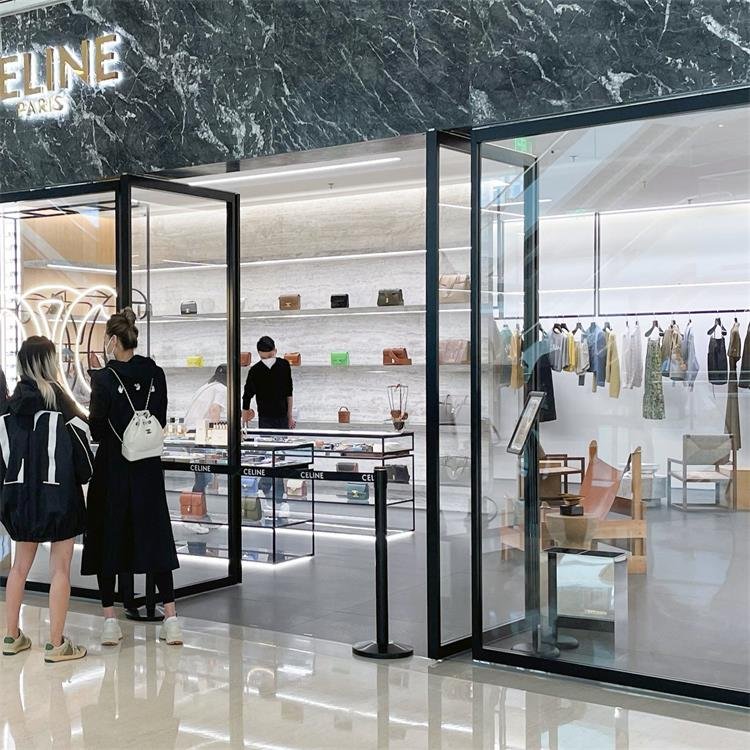

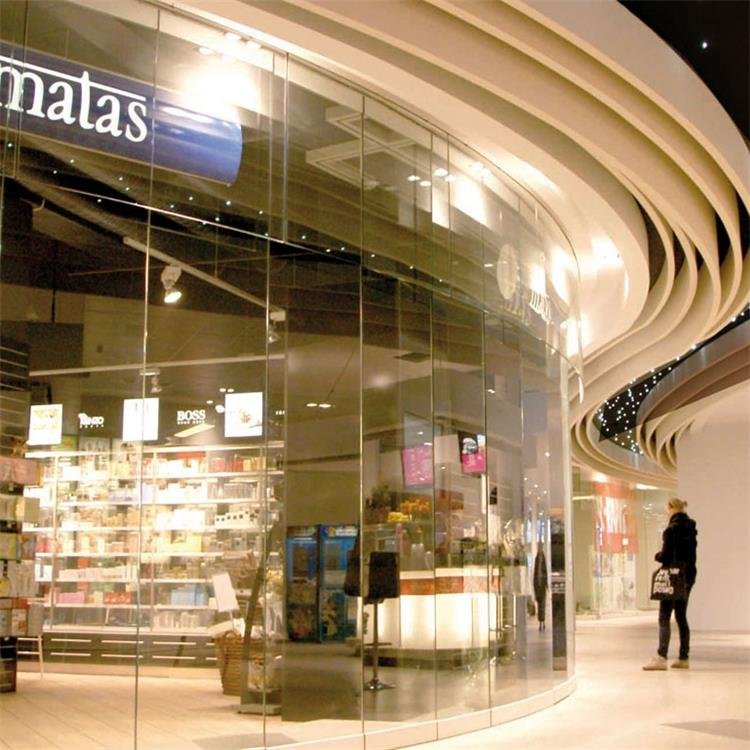

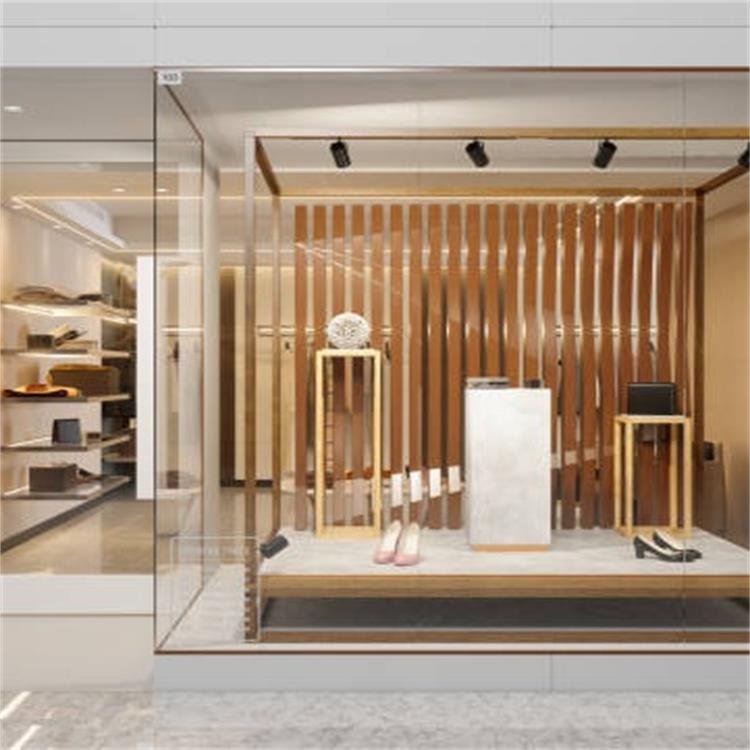

- Doors and windows: It can be used for shopping mall windows, such buildings with high requirements for safety and sound insulation.
- Skylight: In large commercial centers or public facilities, transparent skylights can provide sufficient natural light while ensuring the safety of the structure.
- Bulletproof facilities: Due to its excellent impact resistance, this glass is also suitable for places that require high security protection, such as banks, government agencies, etc.
- Aquarium observation window: In aquariums, this glass can withstand huge water pressure while providing visitors with a clear view.
- Special industrial applications: In some special industrial environments that require earthquake resistance and explosion resistance, this glass can also play an important role.
- High-end residential decoration: In private residences, especially villas and high-end apartments, this glass can be used as a material for balcony fences or large windows, which is both beautiful and safe
To learn more about our products, please visit https://trustmyglass.com/products
26.28mm clear tempered SGP laminated glass is a high-performance, high-safety glass product suitable for a variety of architectural fields. It provides more possibilities for modern architectural design and has become one of the indispensable materials in modern architectural design.
